Pig / LUBING CLEANINGCUBES Waste air purification for pig houses
LUBING CLEANINGCUBES Waste air purification for pig houses

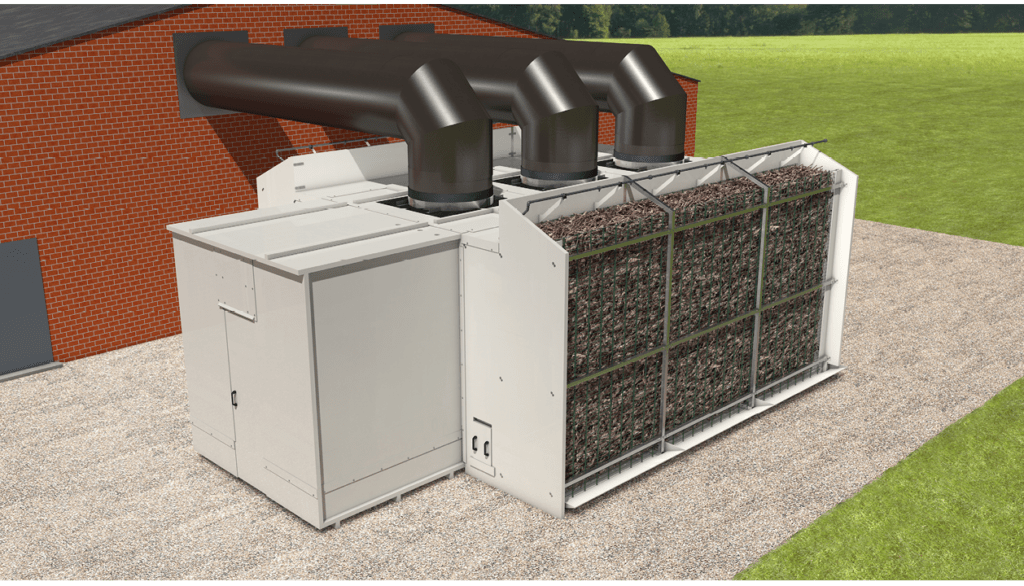

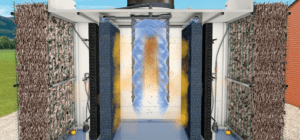

The LUBING CleaningCubes are a modular two-stage system for waste air purification for pigsties. The optional downstream biological stage is responsible for odor reduction and is always fully operational to allow uniform growth of the biology.
Benefits
- Smallest size possible due to two outlet surfaces.
- Number of Cubes used can be adapted to the needs of the house size.
- Thanks to chemical stage only very little blowdown water.
- Supplied in prefabricated individual parts.
- Also suitable for partial exhaust air treatment.
- Optional BioCubes for odor reduction.
TechnicCube
Features
- supplies up to eight CleaningCubes
ChemCube
Features
- one ChemCube cleans up to 25,000 m³/h of exhaust air from ammonia and dust
- spraying of the washing water in the ChemCube for optimum cleaning performance
BioCube
Features
- optional for additional reduction of odors
- coupled root wood wall elements
- constant aeration for optimal bio-growth
Control
Features
- regulates functions and takes over all controls fully automatically
Pad and droplet separator
Features
- effective cleaning in smallest space
- combination of 1st pad (left) and 2nd mist eliminator
Root wood in the BioCube
Features
- ideal breeding ground for bacterial degradation of the odorous particles
- torn pieces for maximum surface area and intensive effect
Wash water
Features
- the acid wash water is produced by adding sulfuric acid
- delivery in practical IBCs
Blowdown water
Features
- used wash water is pumped into a collection tank
- can be used as organic fertilizer
