Lift system for Conveyor-Systems

Egg collection by lift system is a simple, compact and effi cient method. It involves adjusting the height of a conveyor system so that different tiers can be collected with just one Conveyor-System.

The transfer of eggs from one conveyor system to another is a critical point in the transport. Lift systems have the advantage over elevators that there is only one transfer from the longitudinal belt to the cross belt. With elevators, on the other hand, two transfers are necessary – from the longitudinal belt to the elevator and from the elevator to the cross belt. Soft-shell eggs often lead to heavy soiling of other eggs as they are transported on top of each other. In lift systems, on the other hand, damaged eggs can simply fall through to the bottom.

After collecting the eggs, the conveyor system is moved to the parking position with the lift system in the uppermost position. This leaves the access to the laying area clear.

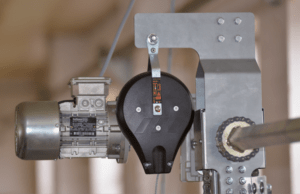

In addition to safe egg transport, the safety of the lift system itself is also ensured. The drop guard is mounted separately, so that even if the drive chain breaks (which is designed with 10-fold safety), the Conveyor-System is secured against dropping.

The lift columns with the LUBING accessories program allow almost unlimited possibilities in the lift column confi guration. We will be pleased to provide you with an individual offer!
