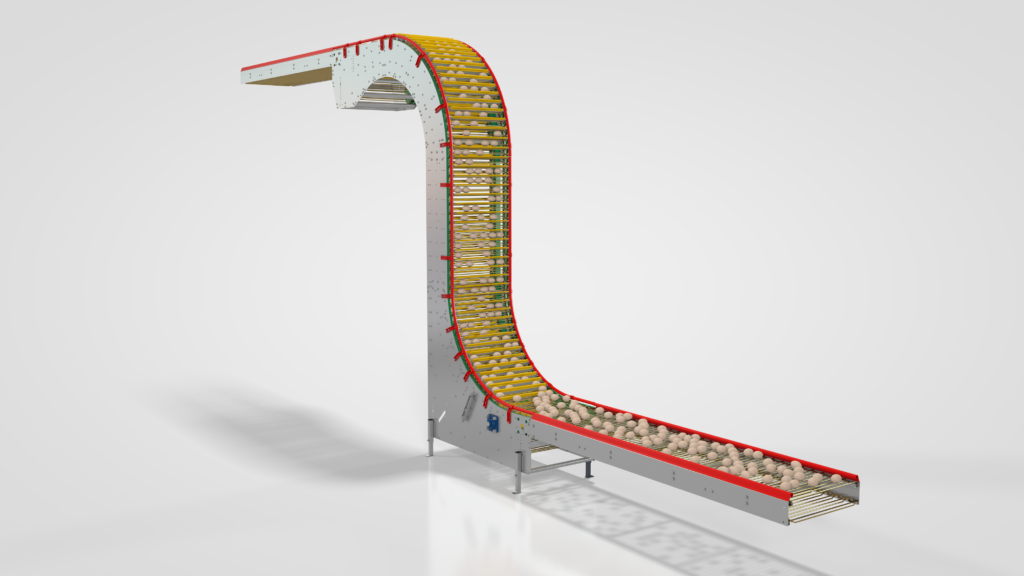

Vertical conveyor unit
The great advantage of this new development is that the eggs do not have to be transferred to another conveyor chain for vertical conveying.

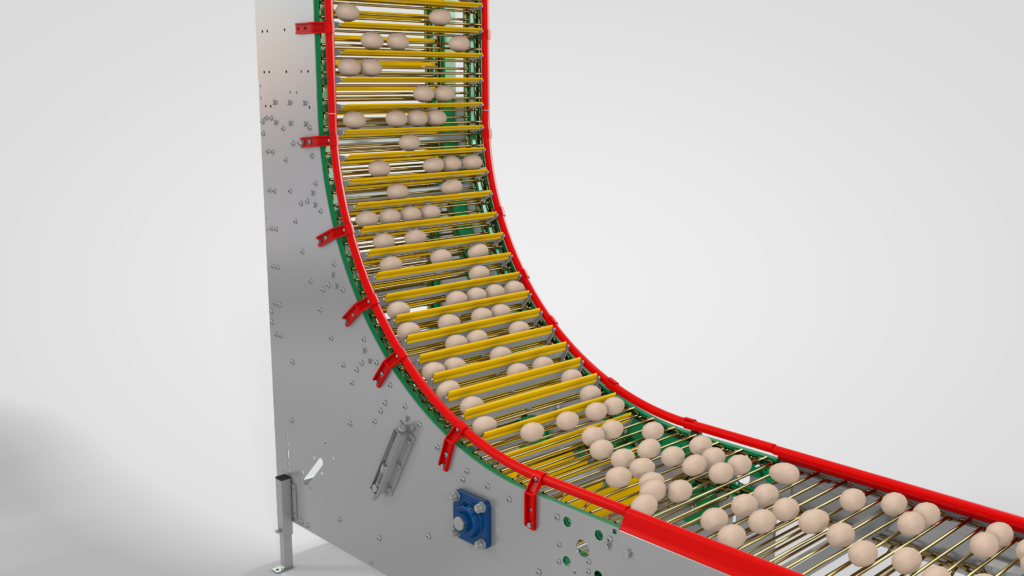

The tab elements of the conveyor chain of the vertical conveyor slide into the conveyor chain from below shortly before vertical conveying. The eggs are slowly and carefully pushed into a position for safe vertical conveying. In the radius, the weight of the eggs shifts from the bars of the conveyor chain to the attachment element. In this position, the vertical conveyor is passed through.

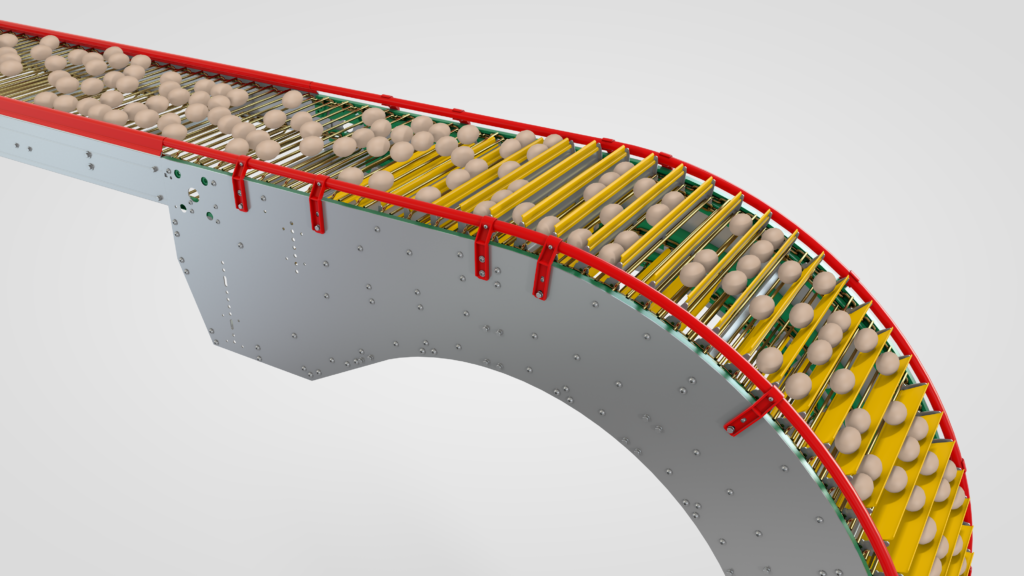

In the second radius, the weight of the eggs is shifted from the attachment element back onto the bars of the conveyor chain. The attachment elements are then slowly pulled downwards out of the chain and the eggs are placed back onto the bars of the conveyor chain in a stable position.
The chain with the tab elements does not require its own drive, as it is pulled along with the conveyor chain.
Benefits
- gradients or inclines with 90°
- no additional transfers
- highest functional reliability due to two externally guided round link chains
- no centrally placed support or guide elements required: no interfering contours on the conveyor line
- the individually replaceable tab elements made of high-quality plastic ensure the secure position of the eggs in the transition from level to slope and for vertical conveying
- the special design of the tab elements ensures gentle egg handling
