Poultry / Egg input unit for conveyor chain rods

Egg input unit for conveyor chain rods

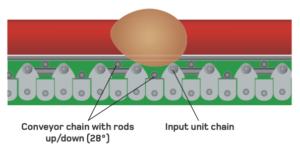

The Input Unit chain is equipped with input tubes at a higher position, which are placed between the rods of the conveyor chain. Owing to the reduced height differential, there is no hard striking of the eggs onto the lower metal rod of the conveyor chain.

The feed tubes are made of soft plastic and guarantee a protective handling of the eggs during the transition process.

Benefits

  • Signifi cant reduction of damaged eggs at the transition point on the conveyor chain with rods up/down (28°).
  • At 90° transitions, a transport quality equivalent to that of the standard belt is realised without having to sacrifi ce the increased gradeability of the conveyor belt up/down.
  • Problem-free integration into existing ConveyorSystems.
  • The feed chain is driven by the conveyor chain; no further drive is needed.

Download

Download more information, versions and technical data as a PDF here

0887-1_Eingabeeinheit_web.pdf (2 MB)
